Jabsco Pump model 36800-1000 Parts

PARTS LIST for Jabsco Pump model # 36800-1000 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 36800-1000 Product Page )

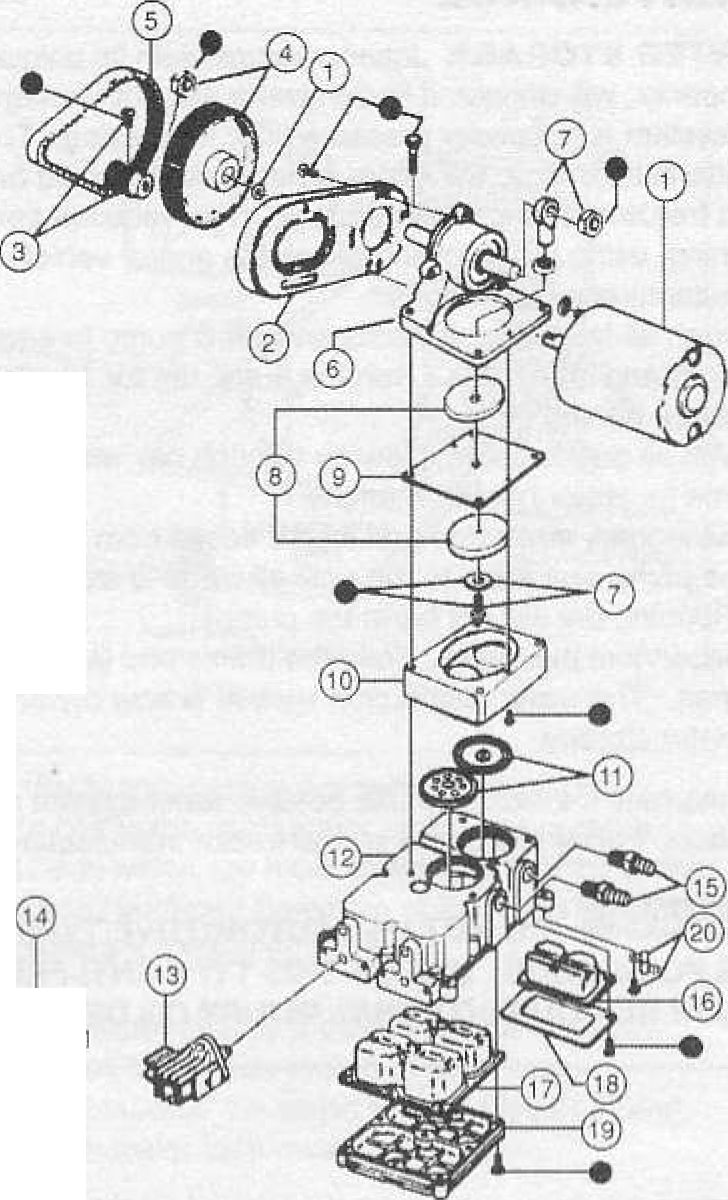

Blowup of 36800-1000

Item 1
(on image above)

Part # 30200-0000

Motor, 12 Volt DC

$ 170.42 / each

Item 2
(on image above)

Part # 34628-0000

Motor Mount

$ 28.46 / each

Item 3
(on image above)

Part # 37169-0000

Small Pulley

$ 52.85 / each

Item 4
(on image above)

Part # 37170-0001

Large Pulley

$ 61.79 / each

Item 6
(on image above)

Part # 35506-0001

Jack Shaft Assembly

$ 250.92 / each

Item 7
(on image above)

Part # 37173-0001

Connecting Rod Assembly

$ 76.87 / each

Item 8
(on image above)

Part # 35503-0000

Diaphragm Plate

$ 16.55 / each

Item 10
(on image above)

Part # 35497-0000

Retainer

$ 32.02 / each

Item 11
(on image above)

Part # 30004-0000

Valve Set (Inlet and Outlet)

$ 70.88 / each

Item 12
(on image above)

Part # 35625-1100

Base Assembly

$ 314.62 / each

Item 13
(on image above)

Part # 37121-0010

Pressure Switch

$ 58.30 / each

Item 14
(on image above)

Part # 18753-0141

Micro Switch only

$ 23.32 / each

Item 15
(on image above)

Part # 37176-0000

Ports (Inlet and Outlet) Barb

$ 40.84 / each

Item 18
(on image above)

Part # 35628-0000

Small Bottom Plate

$ 10.85 / each

Item 19
(on image above)

Part # 35623-0000

Bottom Plate

$ 44.49 / each

Item 20
(on image above)

Part # 37180-0000

Vibration Pad Kit

$ 50.34 / each

Item 21
(on image above)

Part # 37165-0001

Hardware Kit

$ 60.83 / each
