Jabsco Pump model 36950-2200 Parts

PARTS LIST for Jabsco Pump model # 36950-2200 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 36950-2200 Product Page )

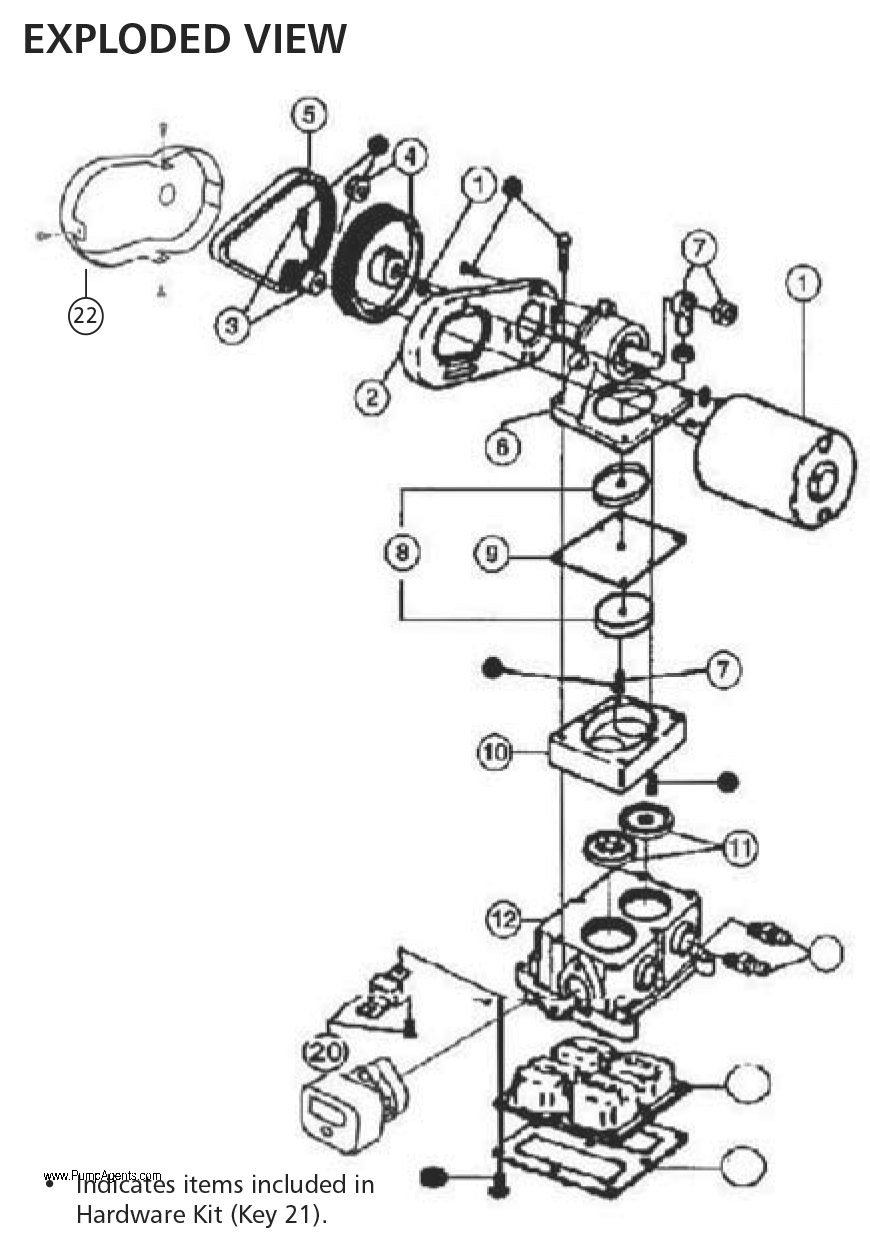

Blowup of 36950-2200

Item 1
(on image above)

Part # 30200-0000

Motor, 12 Volt DC

$ 170.42 / each

Item 2
(on image above)

Part # 34628-0000

Motor Mount

$ 28.46 / each

Item 3
(on image above)

Part # 37169-0000

Small Pulley

$ 52.85 / each

Item 4
(on image above)

Part # 37171-0001

Large Pulley

$ 29.25 / each

Item 6
(on image above)

Part # 35689-0001

Jack Shaft Assembly

$ 258.70 / each

Item 7
(on image above)

Part # 37173-0001

Connecting Rod Assembly

$ 76.87 / each

Item 8
(on image above)

Part # 35503-0000

Diaphragm Plate

$ 16.55 / each

Item 10
(on image above)

Part # 35497-0000

Retainer

$ 32.02 / each

Item 11
(on image above)

Part # 30004-0000

Valve Set (Inlet and Outlet)

$ 70.88 / each

Item 12
(on image above)

Part # 44114-1100

Base Assembly

$ 107.06 / each

Item 13
(on image above)

Part # 44814-1000

Pressure Switch, Low Pressure, 10 Psi On, 20 Psi Off

$ 45.46 / each

Item 14
(on image above)

Part # 18753-0141

Micro Switch Only

$ 23.32 / each

Item 15
(on image above)

Part # 37176-0000

Ports, Inlet and Outlet, Barbed

$ 40.84 / each

Item 17
(on image above)

Part # 44127-1000

Pulsation Dampener

$ 27.66 / each

Item 21
(on image above)

Part # 43990-0071

Hardware Kit

$ 41.44 / each

Item 22
(on image above)

Part # 35689-0001

Belt Guard

$ 258.70 / each
