Jabsco Pump model 37010-4094 Parts

PARTS LIST for Jabsco Pump model # 37010-4094 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 37010-4094 Product Page )

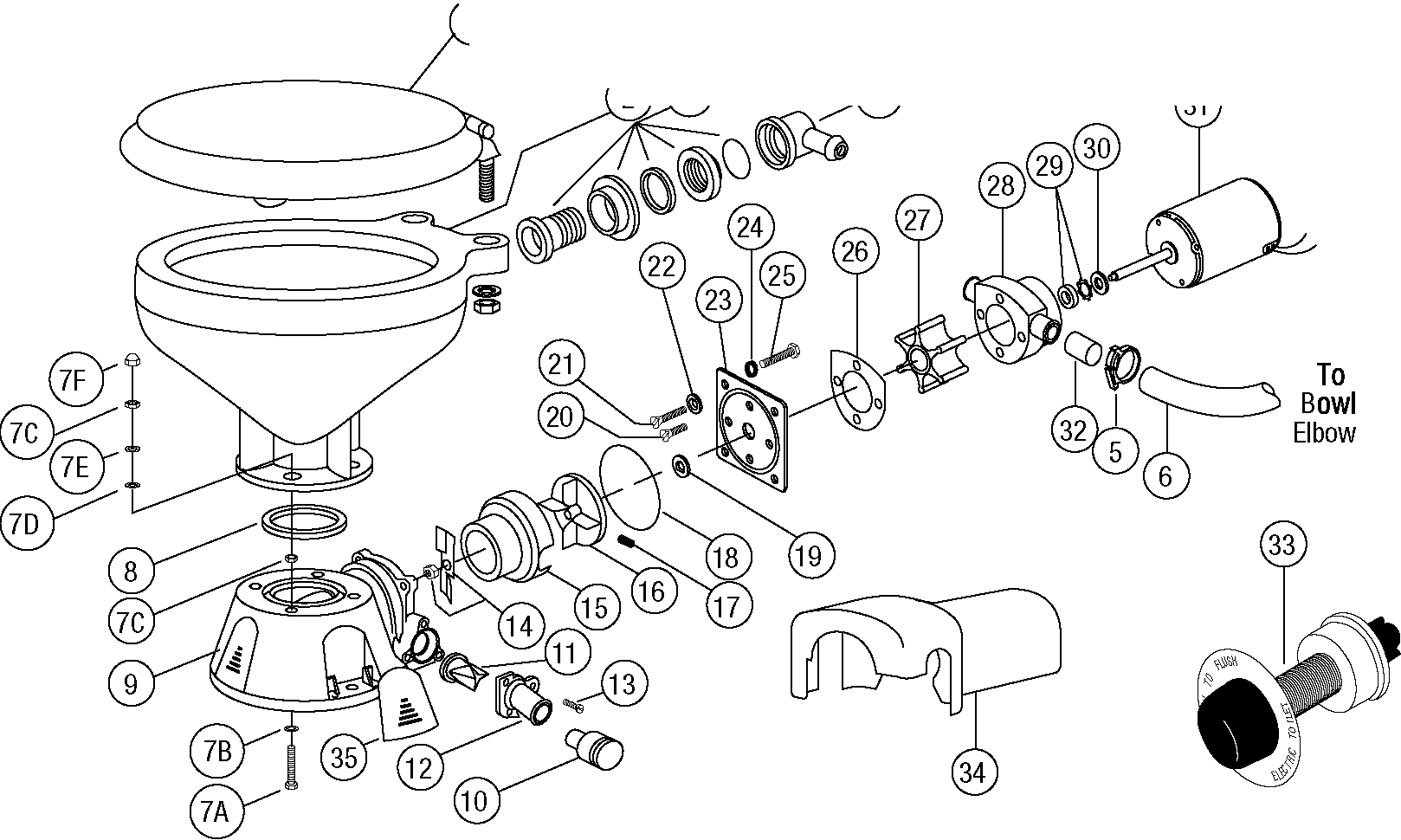

Blowup of 37010-4094

Item 1
(on image above)

Part # 29127-1000

Seat & Cover , Regular (Built Before 2018)

$ 97.02 / each

Item 1
(on image above)

Part # 58104-1000

Seat & Cover , Regular (Built in 2018 and After)

$ 146.93 / each

Item 2
(on image above)

Part # 29126-1000

Bowl, Regular

Contact Us for Pricing

Item 3
(on image above)

Part # 29098-2000

Hinge Set, Regular (Built Before 2018)

$ 11.07 / each

Item 3
(on image above)

Part # 58105-1000

Hinge Set, Regular (Built in 2018 and After)

$ 34.69 / each

Item 34
(on image above)

Part # 29048-0000

Bowl Spud and Intake, Elbow and O-Ring

$ 76.30 / each

Item 5
(on image above)

Part # 18753-0044

Clamp

$ 27.98 / each

Item 6
(on image above)

Part # 29035-0001

Hose

Contact Us for Pricing

Item 7
(on image above)

Part # 18753-0637

Bowl Installation Hardware

$ 28.05 / each

Item 8
(on image above)

Part # 44101-1000

O-Ring Bowl/Seal

$ 11.86 / each

Item 9
(on image above)

Part # 37004-1000

Base Assembly

$ 182.76 / each

Item 10
(on image above)

Part # 98023-0080

1-1/2 Inch Adaptor, Discharge Port

$ 20.88 / each

Item 12
(on image above)

Part # 44107-1300

1 Inch Discharge Port

Contact Us for Pricing

Item 14
(on image above)

Part # 37056-1000

Chopper Plate with Lock Nut

$ 21.20 / each

Item 15
(on image above)

Part # 37014-0000

Macerator Housing

$ 40.87 / each

Item 16
(on image above)

Part # 37006-0000

Centrifugal Impeller

$ 37.38 / each

Item 17
(on image above)

Part # 18753-0492

Set Screw

Contact Us for Pricing

Item 18
(on image above)

Part # 43990-0066

O-Ring

$ 5.35 / each

Item 19
(on image above)

Part # 37036-1000

Sealing Sleeve

$ 5.34 / each

Item 20
(on image above)

Part # 91009-0096

Screw

$ 6.75 / each

Item 21
(on image above)

Part # 91010-0130

Screw

$ 14.27 / each

Item 22
(on image above)

Part # 35445-0000

Washer, Fiber

$ 3.79 / each

Item 23
(on image above)

Part # 37018-0000

Wearplate Kit

$ 53.02 / each

Item 25
(on image above)

Part # 91027-0011

Screw

$ 7.24 / each

Item 26
(on image above)

Part # 12558-0000

Gasket

$ 4.07 / each

Item 27
(on image above)

Part # 6303-0003-P

Flexible Impeller

$ 28.46 / each

Item 28
(on image above)

Part # 12554-0000

Body

$ 115.22 / each

Item 29
(on image above)

Part # 1040-0000

Seal and Retainer

$ 12.95 / each

Item 30
(on image above)

Part # 6342-0000

Slinger

$ 1.80 / each

Item 31
(on image above)

Part # 37065-0000

Motor, 24 Volt DC

$ 309.40 / each

Item 32
(on image above)

Part # 93003-0240

Adaptor

$ 27.14 / each

Item 33
(on image above)

Part # 37020-0000

Switch and Plate

$ 92.29 / each

Item 34
(on image above)

Part # 43990-0051

Motor Cover

$ 41.01 / each

Item 35
(on image above)

Part # 37003-1000

Screw Cover (3 Each)

$ 15.79 / each

Item SK
(on image above)

Part # 37040-0000

Service Kit

$ 85.87 / each

Item PUMP
(on image above)

Part # 37042-0011

None

Macerator Pump and Motor Assembly, 24 Volt Dc

Contact Us for Pricing
