Jabsco Pump model 37245-4094 Parts

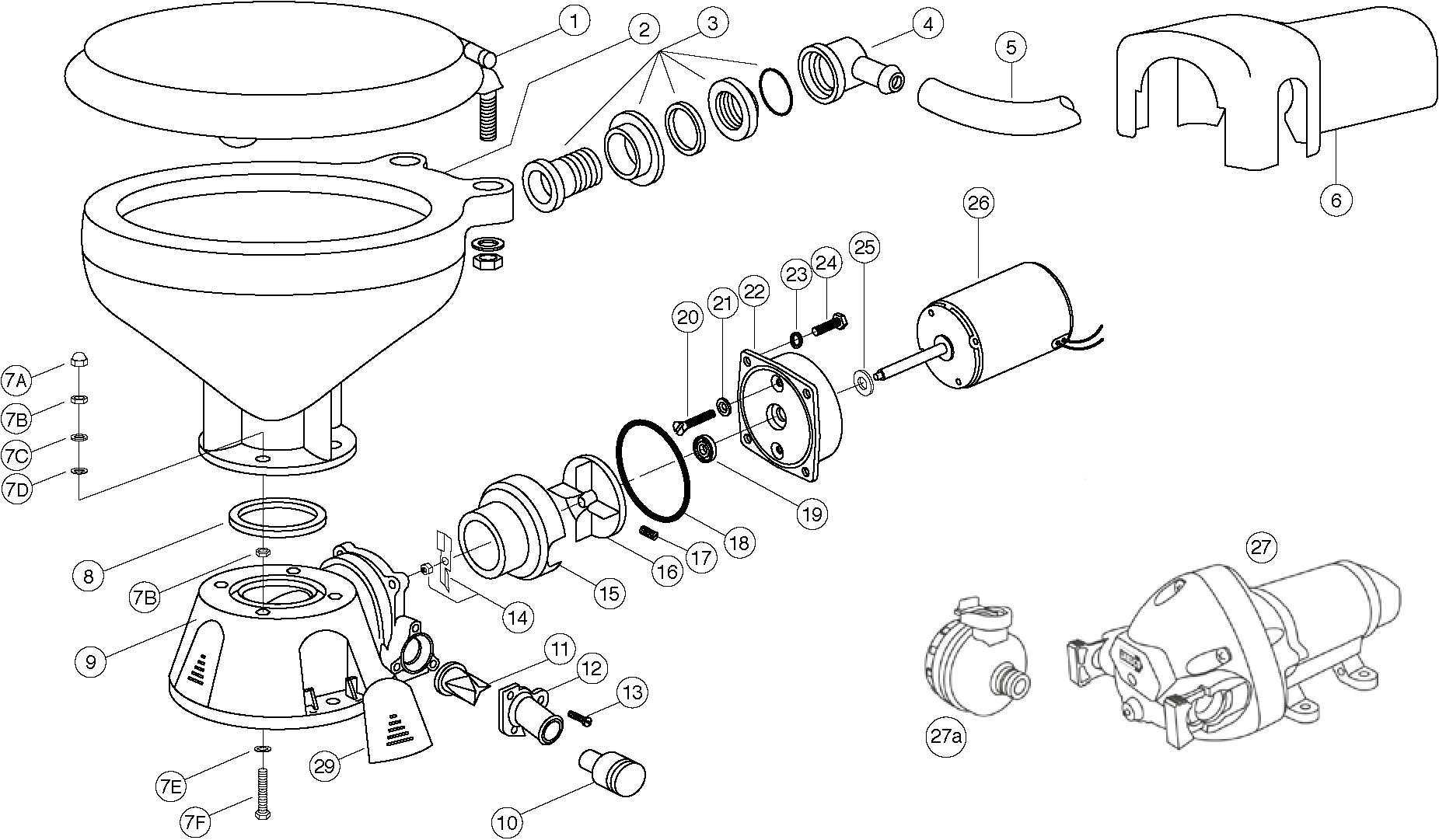

PARTS LIST for Jabsco Pump model # 37245-4094 Pump:
( Click Here for the Jabsco Pump 37245-4094 Product Page )
Item 1
(on image above)
Seat And Cover For Regular Bowls (Built Before 2018)
$ 97.02 / each
Item 1
(on image above)
Seat And Cover For Regular Bowls (Built 2018 And After)
$ 146.93 / each
Item 1A
(on image above)
Hinge Set For Regular Bowls (Built Before 2018)
$ 11.07 / each
Item 1A
(on image above)
Hinge Set For Regular Bowls (Built 2018 And After)
$ 34.69 / each
Item 2
(on image above)
Bowl, Regular Size
Contact Us for Pricing
Item 34
(on image above)
Bowl Spud, Intake Elbow And O-Ring
$ 76.30 / each
Item 5
(on image above)
Hose, 6 Feet
$ 51.01 / each
Item 6
(on image above)
Motor Cover
$ 28.75 / each
Item 7
(on image above)
Bowl Installation Hardware
$ 28.05 / each
Item 8
(on image above)
Bowl O-Ring Seal
$ 11.86 / each
Item 9
(on image above)
Base Assembly
$ 182.76 / each
Item 10
(on image above)
1-1/2 Inch Adaptor, Discharge Port
$ 20.88 / each
Item 11
(on image above)
Joker Valve
$ 13.20 / each
Item 12
(on image above)
1 Inch Discharge Port
$ 12.28 / each
Item 13
(on image above)
Screw
$ 5.45 / each
Item 14
(on image above)
Chopper Plate With Lock Nut
$ 21.20 / each
Item 15
(on image above)
Macerator Housing
$ 40.87 / each
Item 16
(on image above)
Centrifugal Impeller
$ 37.38 / each
Item 17
(on image above)
Set Screw
Contact Us for Pricing
Item 18
(on image above)
O-Ring
$ 5.35 / each
Item 19
(on image above)
Seal
$ 12.95 / each
Item 20
(on image above)
Screw
Contact Us for Pricing
Item 21
(on image above)
Washer, Plastic
$ 3.79 / each
Item 22
(on image above)
Seal Housing
$ 41.15 / each
Item 24
(on image above)
Screw
$ 7.24 / each
Item 25
(on image above)
Slinger
$ 1.80 / each
Item 26
(on image above)
Motor, 24 Volt DC
$ 276.34 / each
Item 27
(on image above)
Par-Max 2.9 Rinse Pump, 24 Volt Dc
Contact Us for Pricing
Item 27a
(on image above)
Pump Guard
$ 24.56 / each
Item 28
(on image above)
Switch Panel
$ 312.92 / each
Item 29
(on image above)
Screw Cover (3 Each) Service Kit Waste Pump Assembly 12 Volt 24 Volt
$ 15.79 / each
Item SK
(on image above)
Service Kit
$ 29.06 / each
Item MAC
(on image above)
Waste Pump Assembly, 24 Volt DC
$ 294.63 / each
