Jabsco Pump model 4590 Parts

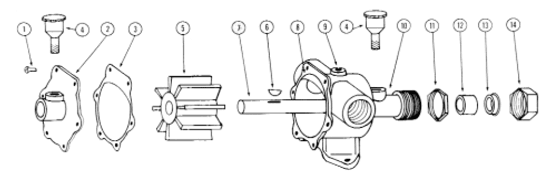

PARTS LIST for Jabsco Pump model # 4590 Pump:
( Click Here for the Jabsco Pump 4590-0003 Product Page )
Item 1
(on image above)
Screw (End Cover)
$ 15.71 / each
Item 2
(on image above)
End Cover
$ 219.30 / each
Item 3
(on image above)
Gasket*
$ 9.80 / each
Item 4
(on image above)
Grease Cup
$ 33.64 / each
Item 5
(on image above)
Impeller - Nitrile
$ 68.69 / each
Item 6
(on image above)
Key (Impeller Drive)*
$ 23.55 / each
Item 7
(on image above)
Shaft
$ 122.33 / each
Item 9
(on image above)
Screw (Cam)
$ 7.70 / each
Item 12
(on image above)
Packing (Ring)*
$ 19.63 / each
Item 13
(on image above)
Packing (Gland)
$ 131.39 / each
Item ns
(on image above)
Key Pump Drive (not shown)
$ 10.32 / each
Item SK
(on image above)
Service Kit - w/ Nitrile Impeller c/w Impeller, Gasket,and Packing
$ 138.17 / each
