Jabsco Pump model 4720-0003 Parts

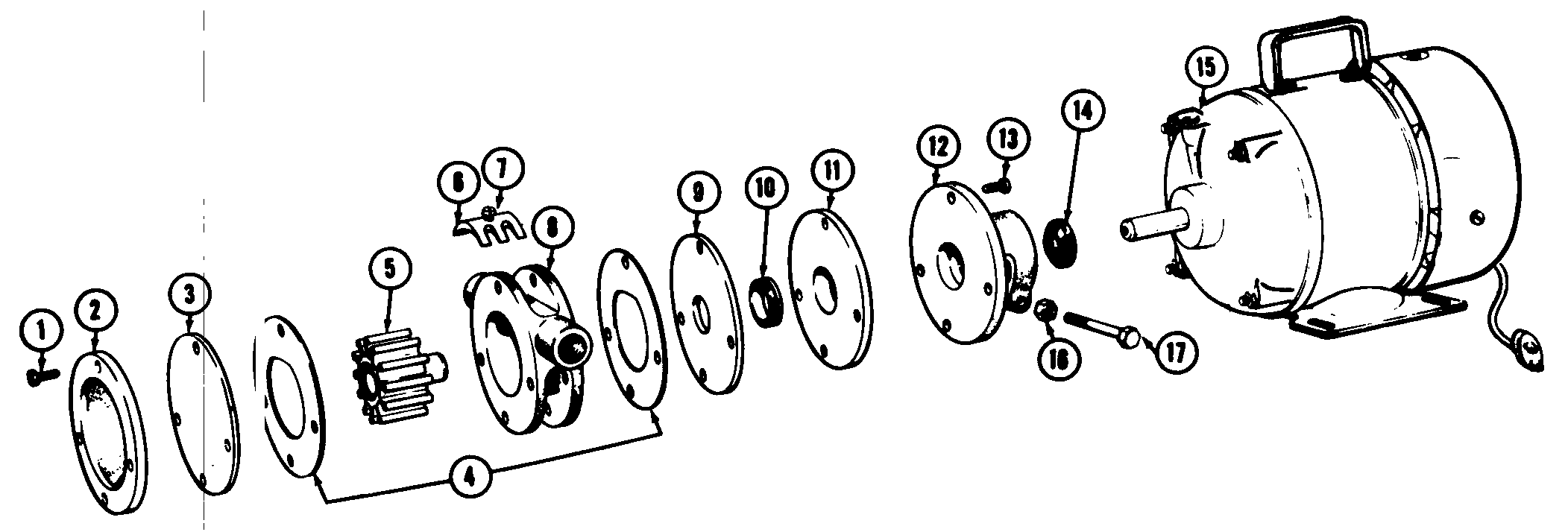

PARTS LIST for Jabsco Pump model # 4720-0003 Pump:
( Click Here for the Jabsco Pump 4720-0003 Product Page )
Item 1
(on image above)
Screw (End Cover)
Contact Us for Pricing
Item 2
(on image above)
End Cover
Contact Us for Pricing
Item 3
(on image above)
Wearplate (Body to End Cover)
$ 48.98 / each
Item 4
(on image above)
Gasket
$ 16.11 / each
Item 5
(on image above)
Impeller
Impeller, Nitrile
$ 206.06 / each
Item 6
(on image above)
Cam
$ 139.42 / each
Item 7
(on image above)
Screw (Cam)
Contact Us for Pricing
Item 8
(on image above)
Body
Contact Us for Pricing
Item 9
(on image above)
Wearplate (Body to Adaptor)
$ 37.59 / each
Item 10
(on image above)
Seal
Seal
$ 98.02 / each
Item 11
(on image above)
Liner
$ 102.05 / each
Item 12
(on image above)
Adaptor
$ 220.05 / each
Item 13
(on image above)
Screw (Adaptor)
Contact Us for Pricing
Item 14
(on image above)
Slinger
$ 9.80 / each
Item 15
(on image above)
Motor, 1/3 Hp, 115/230 Volts Ac, 60 Hz, Single Phase, Tefc, 1725 Rpm, Continuous Duty, 56-Frame, with Handle and 6 Foot Cord with Three Prong Plug
$ 1277.20 / each
Item 16
(on image above)
Nut (Adaptor)
$ 2.66 / each
Item 17
(on image above)
Bolt (Adaptor)
$ 11.54 / each
Item PMP
(on image above)
Replacement Pump Head Only, with Nitrile Impeller
Contact Us for Pricing
Item SK
(on image above)
Major Overhaul Kit
Service Kit, Nitrile, with Nitrile Impeller, Seal and O-Ring
$ 399.28 / each
