Jabsco Pump model 51580-9001 Parts

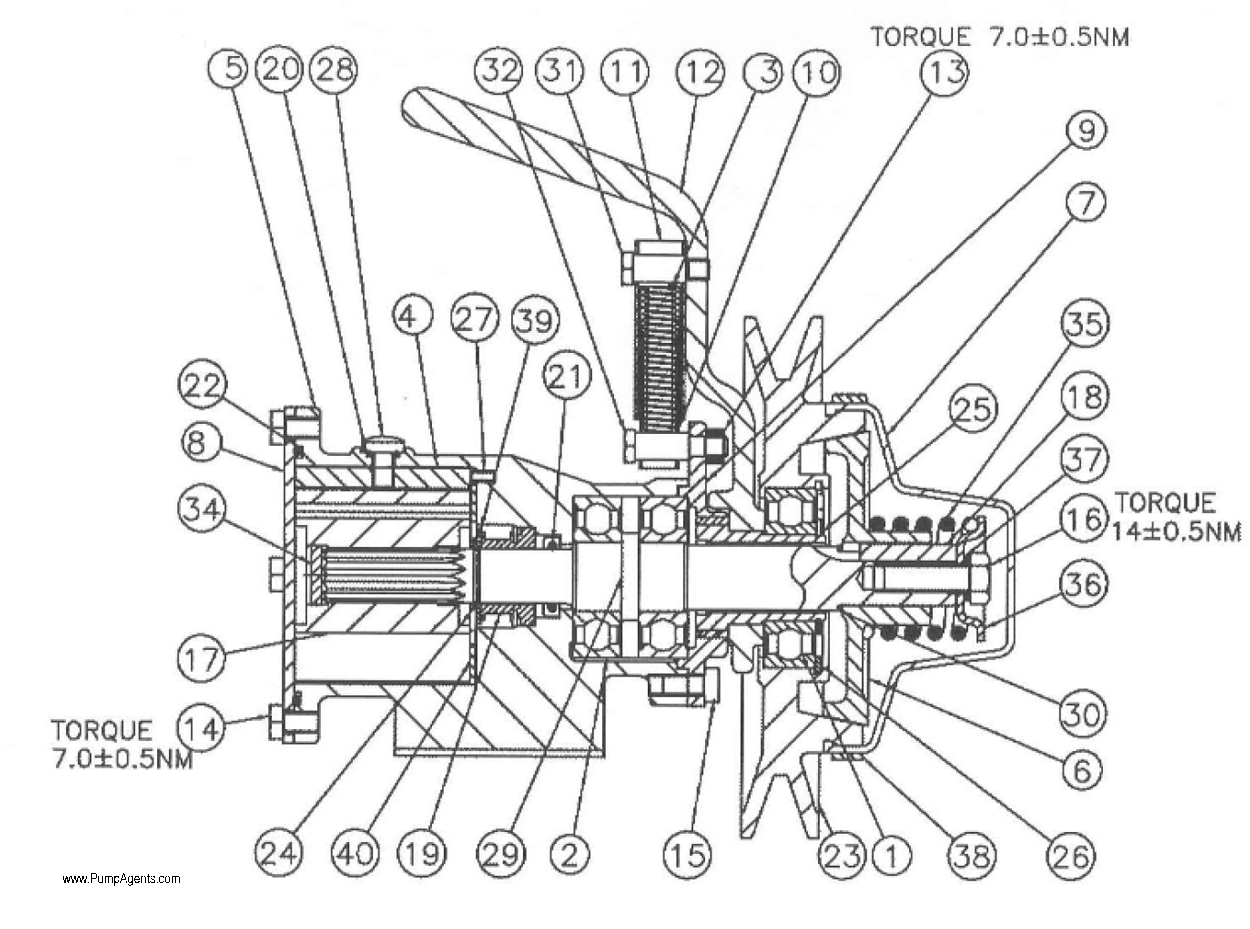

PARTS LIST for Jabsco Pump model # 51580-9001 Pump:
( Click Here for the Jabsco Pump 51580-9001 Product Page )
Item 1
(on image above)
Bearing
Contact Us for Pricing
Item 2
(on image above)
Bearing
$ 13.46 / each
Item 3
(on image above)
Brake Spring
Contact Us for Pricing
Item 4
(on image above)
Cam
$ 38.79 / each
Item 6
(on image above)
Clutch Cone
Contact Us for Pricing
Item 7
(on image above)
Cover
Contact Us for Pricing
Item 8
(on image above)
End Cover
$ 49.50 / each
Item 9
(on image above)
Engaging Mechanism
Contact Us for Pricing
Item 10
(on image above)
Guide Tube Inner
Contact Us for Pricing
Item 11
(on image above)
Guide Tube Outer
Contact Us for Pricing
Item 12
(on image above)
Clutch Handle
Contact Us for Pricing
Item 13
(on image above)
Hex Head Nut
Contact Us for Pricing
Item 14
(on image above)
Hex Head Screw
$ 6.73 / each
Item 15
(on image above)
Hew Head Screw
$ 5.74 / each
Item 16
(on image above)
Hex Head Screw
$ 5.74 / each
Item 17
(on image above)
Impeller
Impeller, Neoprene
Contact Us for Pricing
Item 18
(on image above)
Key 5x5x28
$ 4.60 / each
Item 19
(on image above)
Seal
Mechanical Seal
Contact Us for Pricing
Item 20
(on image above)
O-Ring
$ 4.42 / each
Item 21
(on image above)
O-Ring
$ 4.91 / each
Item 22
(on image above)
O-Ring
$ 20.84 / each
Item 23
(on image above)
Pulley
Contact Us for Pricing
Item 24
(on image above)
Retaining Ring
Contact Us for Pricing
Item 25
(on image above)
Retaining Ring
Contact Us for Pricing
Item 26
(on image above)
Retaining Ring
Contact Us for Pricing
Item 27
(on image above)
Roll Pin
$ 6.74 / each
Item 28
(on image above)
Screw
$ 1.66 / each
Item 29
(on image above)
Shaft
Contact Us for Pricing
Item 30
(on image above)
Shim
Contact Us for Pricing
Item 31
(on image above)
Shoulder Bolt
Contact Us for Pricing
Item 32
(on image above)
Shoulder Bolt
Contact Us for Pricing
Item 33
(on image above)
Socket Set Screw
Contact Us for Pricing
Item 34
(on image above)
Spline Seal
Contact Us for Pricing
Item 35
(on image above)
Spring
Contact Us for Pricing
Item 36
(on image above)
Spring Retainer
Contact Us for Pricing
Item 37
(on image above)
Spring Washer
Contact Us for Pricing
Item 38
(on image above)
Strap
Contact Us for Pricing
Item 39
(on image above)
Support Washer
$ 2.94 / each
