Jabsco Pump model 6050-0001 Parts

PARTS LIST for Jabsco Pump model # 6050-0001 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 6050-0001 Product Page )

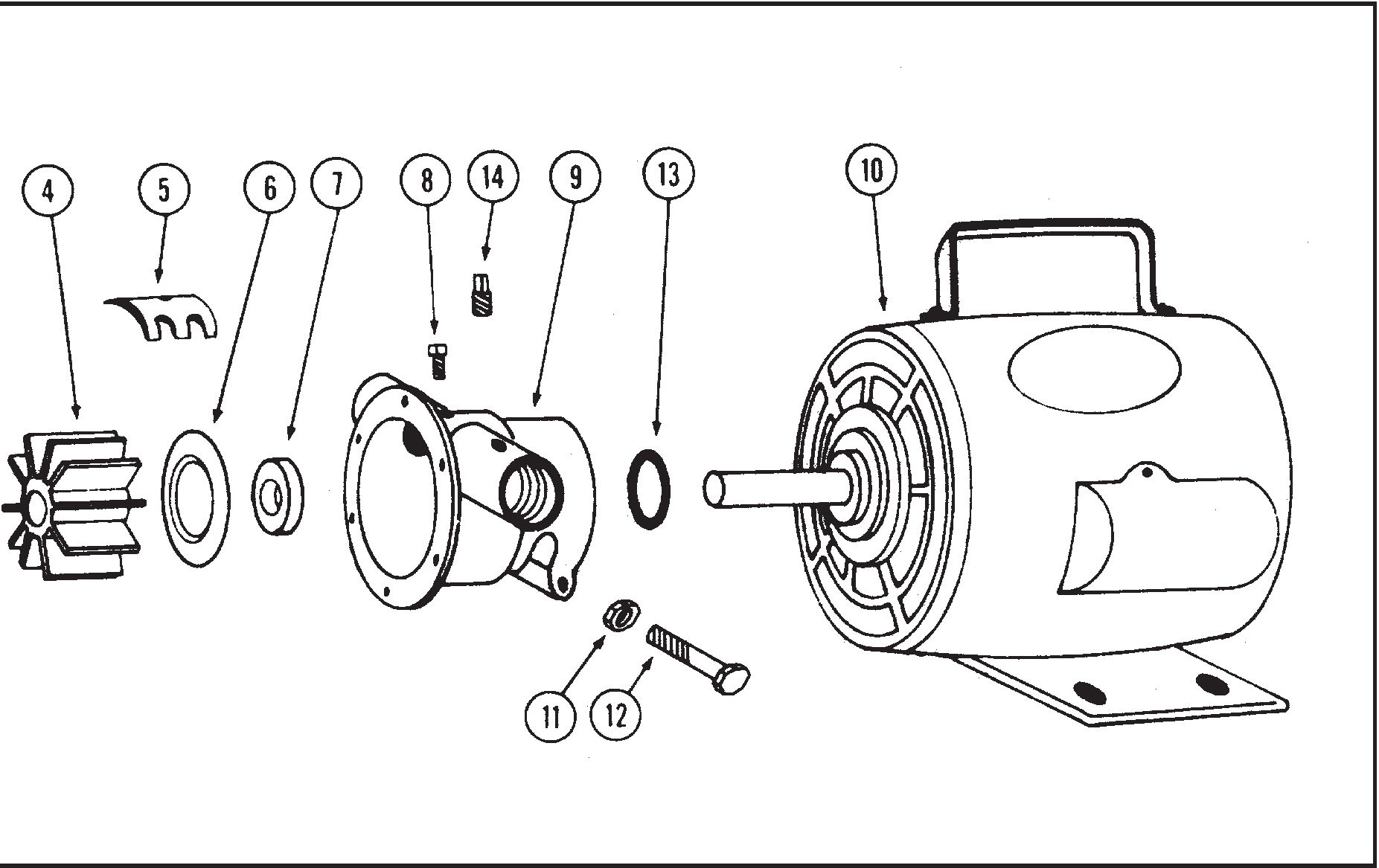

Blowup of 6050-0001

Item 1
(on image above)

Part # 91003-0010

Screws (End Cover)

$ 17.27 / each

Item 2
(on image above)

Part # 11831-0000

End Cover

$ 30.23 / each

Item 3
(on image above)

Part # 890-0000

Gasket

$ 4.31 / each

Item 4
(on image above)

Part # 6056-0001

Impeller

Impeller Neoprene (opt)

$ 130.43 / each

Item 5
(on image above)

Part # 934-0000

Cam

$ 36.69 / each

Item 6
(on image above)

Part # 4156-0010

Wearplate

$ 22.84 / each

Item 7
(on image above)

Part # 92700-0080

Seal

Seal

$ 68.00 / each

Item 8
(on image above)

Part # 91004-0090

Screw (Cam)

$ 3.24 / each

Item 9
(on image above)

Part # 6054-0000

Body

$ 335.29 / each

Item 10
(on image above)

Part # 18736-0000

Motor, 115 Volts AC, ODP

$ 802.86 / each

Item 11
(on image above)

Part # 91105-0030

Nut (pump to motor bolt)

$ 2.66 / each

Item 12
(on image above)

Part # 91095-0090

Bolt (pump to motor)

$ 11.54 / each

Item 13
(on image above)

Part # 6398-0000

O-Ring

$ 10.79 / each

Item 14
(on image above)

Part # 92650-0070

Plug

$ 7.32 / each

Item 14
(on image above)

Part # 90058-0001

Service Kit Neoprene

$ 205.09 / each
