Jabsco Pump model Parts

PARTS LIST for Jabsco Pump model # Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 6590-0005 Product Page )

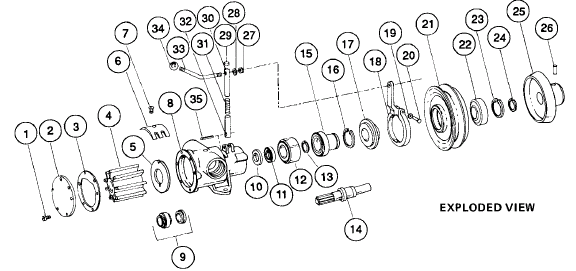

Blowup of 6590-0005

Item 1
(on image above)

Part # 91005-0040

Screw (End Cover)

$ 8.64 / each

Item 2
(on image above)

Part # 12062-0000

End Cover

$ 97.14 / each

Item 3
(on image above)

Part # 816-0000

*Gasket

$ 9.72 / each

Item 4
(on image above)

Part # 836-0003-P

Impeller

*Impeller Nitrile w/ Brass Ins.

$ 66.91 / each

Item 5
(on image above)

Part # 2574-0000

Wearplate

$ 28.07 / each

Item 6
(on image above)

Part # 834-0001

Cam - Brass

$ 60.45 / each

Item 7
(on image above)

Part # 91005-0040

Screw (Cam)

$ 8.64 / each

Item 8
(on image above)

Part # 18753-0118

Body

$ 507.33 / each

Item 9
(on image above)

Part # 6407-0010

Seal

*Seal (Shaft)

$ 74.49 / each

Item 10
(on image above)

Part # 3181-0000

Slinger

$ 5.03 / each

Item 11
(on image above)

Part # 817-0000

Seal (Brg.)

$ 30.23 / each

Item 12
(on image above)

Part # 92600-0040

Ball Bearing (Pump)

$ 173.78 / each

Item 13
(on image above)

Part # 18711-0000

Ret. Ring (Brg. to Shaft)

$ 23.74 / each

Item 14
(on image above)

Part # 824-0010

Shaft

$ 358.91 / each

Item 15
(on image above)

Part # 3856-0000

Body Plug & Eng. Sleeve

$ 190.42 / each

Item 16
(on image above)

Part # 18712-0000

Ret. Ring (Plug to Body)

$ 20.50 / each

Item 17
(on image above)

Part # 2471-0000

Adaptor Ring

$ 143.19 / each

Item 18
(on image above)

Part # 2470-0000

Lever Ring

$ 149.19 / each

Item 19
(on image above)

Part # 91602-0060

Lock Washer (Lever Ring)

$ 14.85 / each

Item 20
(on image above)

Part # 91005-0060

Screw (Lever Ring)

$ 5.64 / each

Item 21
(on image above)

Part # 2472-0010

Clutch Pulley

$ 265.55 / each

Item 22
(on image above)

Part # 92600-0330

Ball Bearing (Pulley)

$ 124.65 / each

Item 23
(on image above)

Part # 18718-0000

Ret. Ring (Brg. to Clutch)

$ 23.74 / each

Item 24
(on image above)

Part # 18707-0000

Ret. Ring (Brb. to Sleeve)

$ 5.45 / each

Item 25
(on image above)

Part # 2473-0000

Clutch Cone

$ 216.97 / each

Item 26
(on image above)

Part # 93100-0010

Roll Pin (Cone)

$ 8.64 / each

Item 27
(on image above)

Part # 91085-0090

Hex Nut (Handle)

$ 1.04 / each

Item 29
(on image above)

Part # 3530-0000

Plug (Rubber)

$ 52.84 / each

Item 31
(on image above)

Part # 3528-0000

Spring (Handle)

$ 20.93 / each

Item 32
(on image above)

Part # 3526-0000

Guide Tube

$ 68.03 / each

Item 33
(on image above)

Part # 2415-0000

Handle (Clutch)

$ 109.02 / each

Item 34
(on image above)

Part # 92330-0010

Knob (Handle)

$ 20.21 / each

Item 1534
(on image above)

Part # 4387-0000

Clutch Kit (Keys No. 15-34)

$ 1005.04 / each

Item SK
(on image above)

Part # 90062-0003

Service Kit Nitrile Impeller c/w Impeller, Gasket, and Seal

$ 183.50 / each
