Jabsco Pump model 777-9051 Parts

PARTS LIST for Jabsco Pump model # 777-9051 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 777-9051 Product Page )

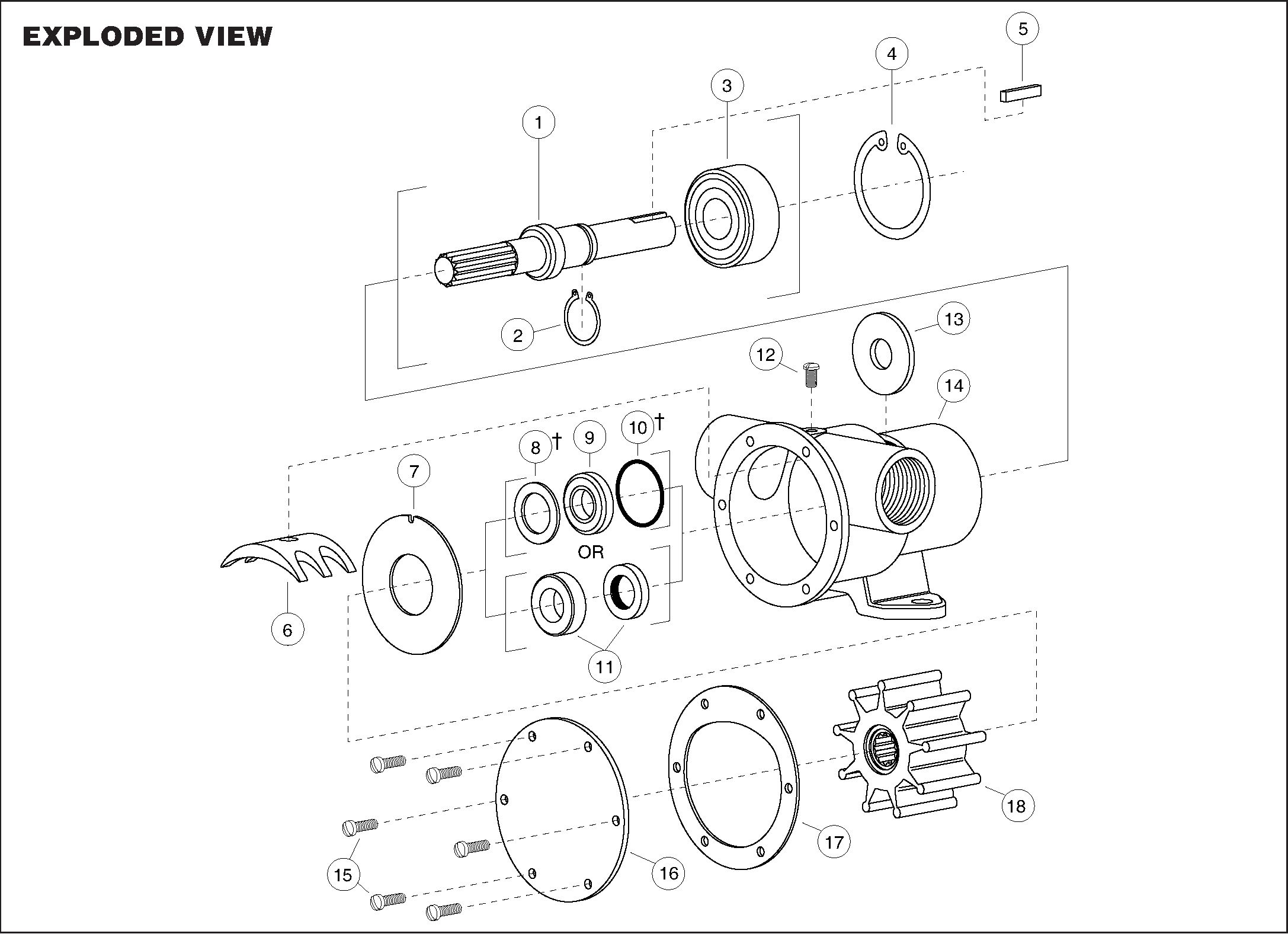

Blowup of 777-9051

Item 1
(on image above)

Part # 6718-0000

Shaft

$ 151.10 / each

Item 2
(on image above)

Part # 18713-0000

Retaining Ring, Bearing to Shaft

$ 7.85 / each

Item 3
(on image above)

Part # 92600-0060

Ball Bearing

$ 117.76 / each

Item 4
(on image above)

Part # 18724-0000

Retaining Ring, Bearing to Body

$ 14.73 / each

Item 5
(on image above)

Part # 9215-0000

Key

$ 10.32 / each

Item 6
(on image above)

Part # 2431-0000

Cam, Half, Brass

$ 119.83 / each

Item 7
(on image above)

Part # 4156-0000

Wearplate

$ 17.67 / each

Item 8
(on image above)

Part # 3166-0000

Seal Spacer

$ 11.04 / each

Item 10
(on image above)

Part # 92000-0210

O-Ring

$ 8.83 / each

Item 11
(on image above)

Part # 96080-0080

Mechanical Seal

$ 60.84 / each

Item 12
(on image above)

Part # 91004-0090

Screw for Cam

$ 2.94 / each

Item 13
(on image above)

Part # 3181-0000

Slinger, used with Lip Seal Only

$ 4.57 / each

Item 14
(on image above)

Part # 798-0020

Body

$ 571.94 / each

Item 15
(on image above)

Part # 91003-0010

Screw for End Cover

$ 15.71 / each

Item 16
(on image above)

Part # 11831-0000

End Cover

$ 27.47 / each

Item 17
(on image above)

Part # 890-0000

Gasket

$ 3.92 / each

Item 18
(on image above)

Part # 17937-0001-P

Impeller, Neoprene

$ 42.18 / each

Item SK
(on image above)

Part # 90118-0001

Major Overhaul Kit

Service Kit, Neoprene, with Neoprene Impeller, O-Ring and Mechanical Seal

$ 102.78 / each
