Jabsco Pump model 82505-0392 Parts( Click Here for the Jabsco Pump 82505-0392 Product Page ) |
|

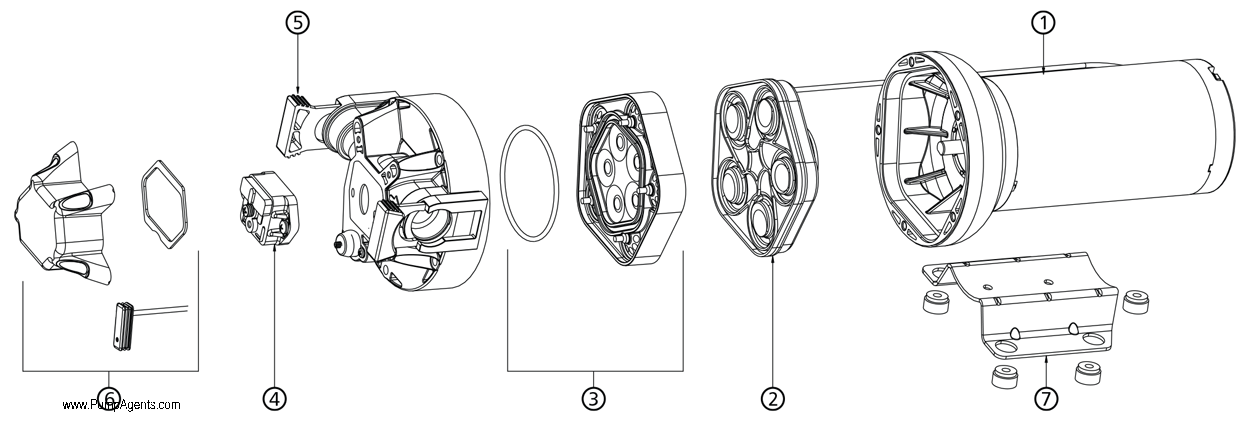

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 82505-0392 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 18753-8000 | Diaphragm/Drive Assembly | $90.24 | 7 in Stock | 1 | ||
| 3 | # 18753-8001 | Check Valve Assembly | $27.07 | 17 in Stock | 1 | ||
| 4 | # 18916-1070 | Pressure Switch, 70 PSI | $39.20 | 14 in Stock | 1 | ||
| 5 | # 18753-5021 | Slide Clips 5 and 6 GPM | $8.28 | 7 in Stock | 1 | ||
