Jabsco Pump model 8860 Parts

PARTS LIST for Jabsco Pump model # 8860 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 8860 Product Page )

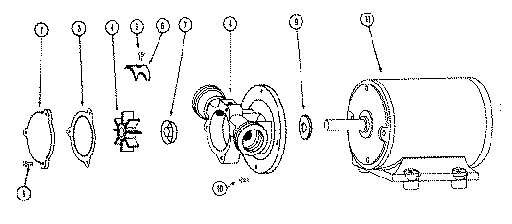

Blowup of 8860

Item 1
(on image above)

Part # 91002-0090

Screw (End Cover)

$ 14.73 / each

Item 2
(on image above)

Part # 12076-0000

End Cover

$ 29.45 / each

Item 3
(on image above)

Part # 7828-0000

*Gasket

$ 5.89 / each

Item 4
(on image above)

Part # 14750-0001-P

* Impeller, Neoprene

$ 39.25 / each

Not Shown
(Not Shown on image above)

Part # 14750-0003-P

Impeller, Nitrile

$ 38.26 / each

Item 5
(on image above)

Part # 91002-0010

Screw (Cam)

$ 14.73 / each

Item 6
(on image above)

Part # 8089-0000

Cam

$ 32.52 / each

Item 7
(on image above)

Part # 93000-0100

*Seal

$ 15.71 / each

Item 9
(on image above)

Part # 6342-0000

Slinger

$ 1.63 / each

Item 11
(on image above)

Part # 98012-0020

Motor, 12 Volt DC

$ 299.86 / each

Item SK
(on image above)

Part # 90092-0007

Service Kit, Neoprene

$ 42.33 / each

Item SK
(on image above)

Part # 90092-0004

Service Kit, Nitrile

$ 51.01 / each

Item PH
(on image above)

Part # 9040-0001

Pump Head Only

$ 216.61 / each
