Lutz Pump model 0103-506 Parts

PARTS LIST for Lutz Pump model # 0103-506 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Lutz Pump 0103-506 Product Page )

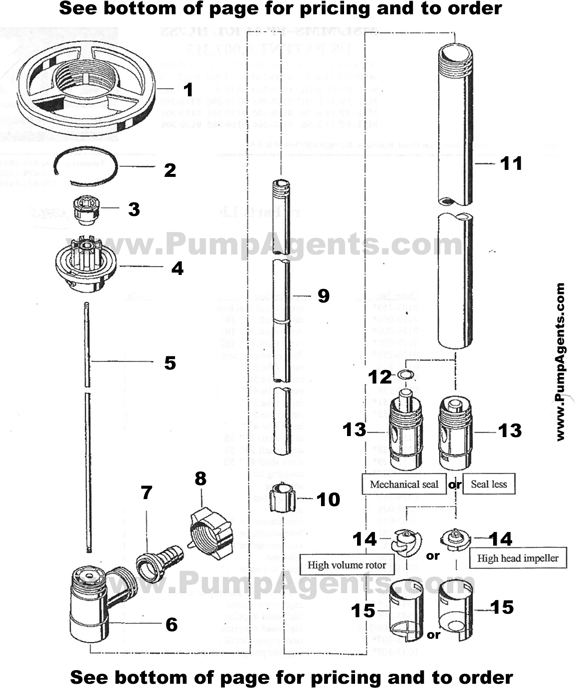

Blowup of 0103-506

Item 1
(on image above)

Part # 0343-842

Hand Wheel

$ 41.88 / each

Item 1
(on image above)

Part # 0343-842

Hand Wheel

$ 41.88 / each

Item 2
(on image above)

Part # 0301-508

Snap Ring

$ 1.50 / each

Item 2
(on image above)

Part # 0301-508

Snap Ring

$ 1.50 / each

Item 3
(on image above)

Part # 0201-004

Coupling Kit

$ 46.25 / each

Item 3
(on image above)

Part # 0201-004

Coupling Kit

$ 46.25 / each

Item 4
(on image above)

Part # 0110-220

Flange/ Bearing Unit

$ 116.62 / each

Item 4
(on image above)

Part # 0110-220

Flange/ Bearing Unit

$ 116.62 / each

Item 5
(on image above)

Part # 0150-029

Drive Shaft, 47 Inch, SS - Stainless Steel

$ 87.50 / each

Item 5
(on image above)

Part # 0150-029

Drive Shaft, 47 Inch, SS - Stainless Steel

$ 87.50 / each

Item 6
(on image above)

Part # 0343-300

Outrun Piece

$ 77.25 / each

Item 6
(on image above)

Part # 0343-300

Outrun Piece

$ 77.25 / each

Item 7
(on image above)

Part # 0343-118

Hose Connector 1/2 Inch

$ 12.38 / each

Item 7
(on image above)

Part # 0343-118

Hose Connector 1/2 Inch

$ 12.38 / each

Item 7
(on image above)

Part # 0343-051

Hose Connector 3/4 Inch

$ 12.88 / each

Item 7
(on image above)

Part # 0343-051

Hose Connector 3/4 Inch

$ 12.88 / each

Item 7
(on image above)

Part # 0343-081

Hose Connector 1-1/4 Inch

$ 12.88 / each

Item 7
(on image above)

Part # 0343-081

Hose Connector 1-1/4 Inch

$ 12.88 / each

Item 7
(on image above)

Part # 0343-082

Hose Connector 1 Inch

$ 12.88 / each

Item 7
(on image above)

Part # 0343-082

Hose Connector 1 Inch

$ 12.88 / each

Item 8
(on image above)

Part # 0343-106

Wing Nut

$ 8.50 / each

Item 8
(on image above)

Part # 0343-106

Wing Nut

$ 8.50 / each

Item 9
(on image above)

Part # 0110-253

Inner Tube, 47 Inch

$ 125.62 / each

Item 9
(on image above)

Part # 0110-253

Inner Tube, 47 Inch

$ 125.62 / each

Item 10
(on image above)

Part # 0343-028

Support

$ 11.12 / each

Item 10
(on image above)

Part # 0343-028

Support

$ 11.12 / each

Item 11
(on image above)

Part # 0110-224

Outer Tube, 47 Inch

$ 92.38 / each

Item 11
(on image above)

Part # 0110-224

Outer Tube, 47 Inch

$ 92.38 / each

Item 12
(on image above)

Part # 0314-233

O-Ring, Viton

$ 9.50 / each

Item 12
(on image above)

Part # 0314-233

O-Ring, Viton

$ 9.50 / each

Item 13
(on image above)

Part # 0103-250

Mechanical Seal Housing

$ 187.88 / each

Item 13
(on image above)

Part # 0103-250

Mechanical Seal Housing

$ 187.88 / each

Item 14
(on image above)

Part # 0343-305

High Volume Rotor

$ 47.12 / each

Item 14
(on image above)

Part # 0343-306

High Head Impeller

$ 47.00 / each

Item 15
(on image above)

Part # 0343-307

Rotor Pump Foot

$ 47.00 / each

Item 15
(on image above)

Part # 0343-308

Impeller Pump Foot

$ 47.12 / each
