March Pump model 0130-0158-0200 Parts

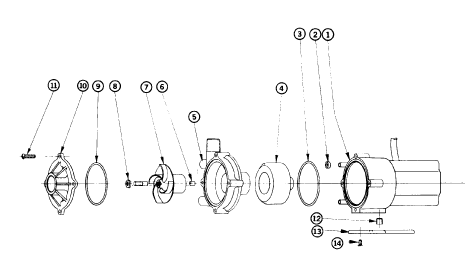

PARTS LIST for March Pump model # 0130-0158-0200 Pump:
Item 2
(on image above)
Seal (LC)
$ 1.15 / each
Item 3
(on image above)
O-Ring (-149) 3/32CS x 2-13/16ID x 3OD
$ 4.02 / each
Item 4
(on image above)
Drive Magnet Assy (.250 Bore)
$ 56.35 / each
Item 5
(on image above)
Housing (Rear) & Plug Assy LC
$ 25.30 / each
Item 6
(on image above)
Shaft
$ 11.50 / each
Item 7
(on image above)
Impeller (Molded) 2.406 Dia
$ 21.85 / each
Item 8
(on image above)
Thrust Washer (Front)
$ 4.60 / each
Item 9
(on image above)
O-Ring (-146) 3/32CS x 2-5/8ID x 2-13/16OD
$ 3.45 / each
Item 10
(on image above)
Cover (Hsg) 3/4FPT Inlet
$ 9.20 / each
Item 11
(on image above)
Screw (Truss Hd) Phillips #10-32 x 1-1/2Lg
$ 0.86 / each
Item 13a
(on image above)
Base (Mtg)
$ 6.90 / each
Item 13b
(on image above)
Base (Mtg) w/Rubber Grommets
$ 17.25 / each
