Myers Pump model ME3F-11P Parts

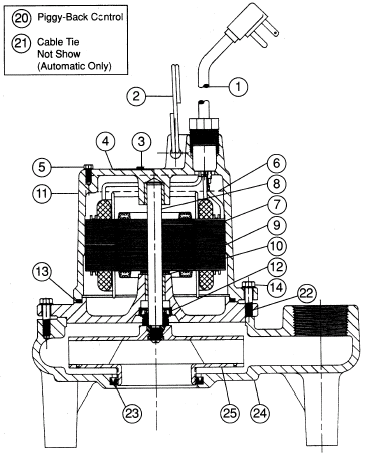

PARTS LIST for Myers Pump model # ME3F-11P Pump:
( Click Here for the Myers Pump ME3F-11P Product Page )
Item 1
(on image above)
Electric Cord, 115 Volt
$ 108.78 / each
Item 2
(on image above)
Ring, Lift
$ 12.74 / each
Item 3
(on image above)
Plug, 1/4 NPT
$ 11.15 / each
Item 4
(on image above)
Plate, Name (Not Starnnedl
$ 17.52 / each
Item 5
(on image above)
Tapping, Screw (Manual)
$ 3.98 / each
Item 5
(on image above)
Tapping, Screw (Automatic)
$ 8.37 / each
Item 7
(on image above)
Stator, 115 Volt
$ 436.34 / each
Item 9
(on image above)
Washer, Thrust, SST
$ 11.15 / each
Item 10
(on image above)
Washer, Thrust, Graphite
$ 20.70 / each
Item 11
(on image above)
Housing, Motor
$ 281.87 / each
Not Shown
(Not Shown on image above)
Housing with Stator, 115 Volt
$ 828.89 / each
Item 12
(on image above)
Seal, 1/2 Shaft
$ 68.48 / each
Item 13
(on image above)
Gasket, Rubber
$ 14.33 / each
Item 14
(on image above)
Screw, Cap, 1/4-20 x 7/8 Lg. - ME3F
$ 11.15 / each
Item 17
(on image above)
Gasket
$ 101.92 / each
Item 18
(on image above)
Plate, Suction
$ 20.70 / each
Item 19
(on image above)
Tapping, Screw
$ 8.37 / each
Item 22
(on image above)
Plate, Seal
$ 237.28 / each
Item 23
(on image above)
Cup, HUVA
$ 25.48 / each
Item 25
(on image above)
Impeller
$ 111.72 / each
