Oberdorfer Pump model N202M-16 Parts

PARTS LIST for Oberdorfer Pump model # N202M-16 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Oberdorfer Pump N202M-16 Product Page )

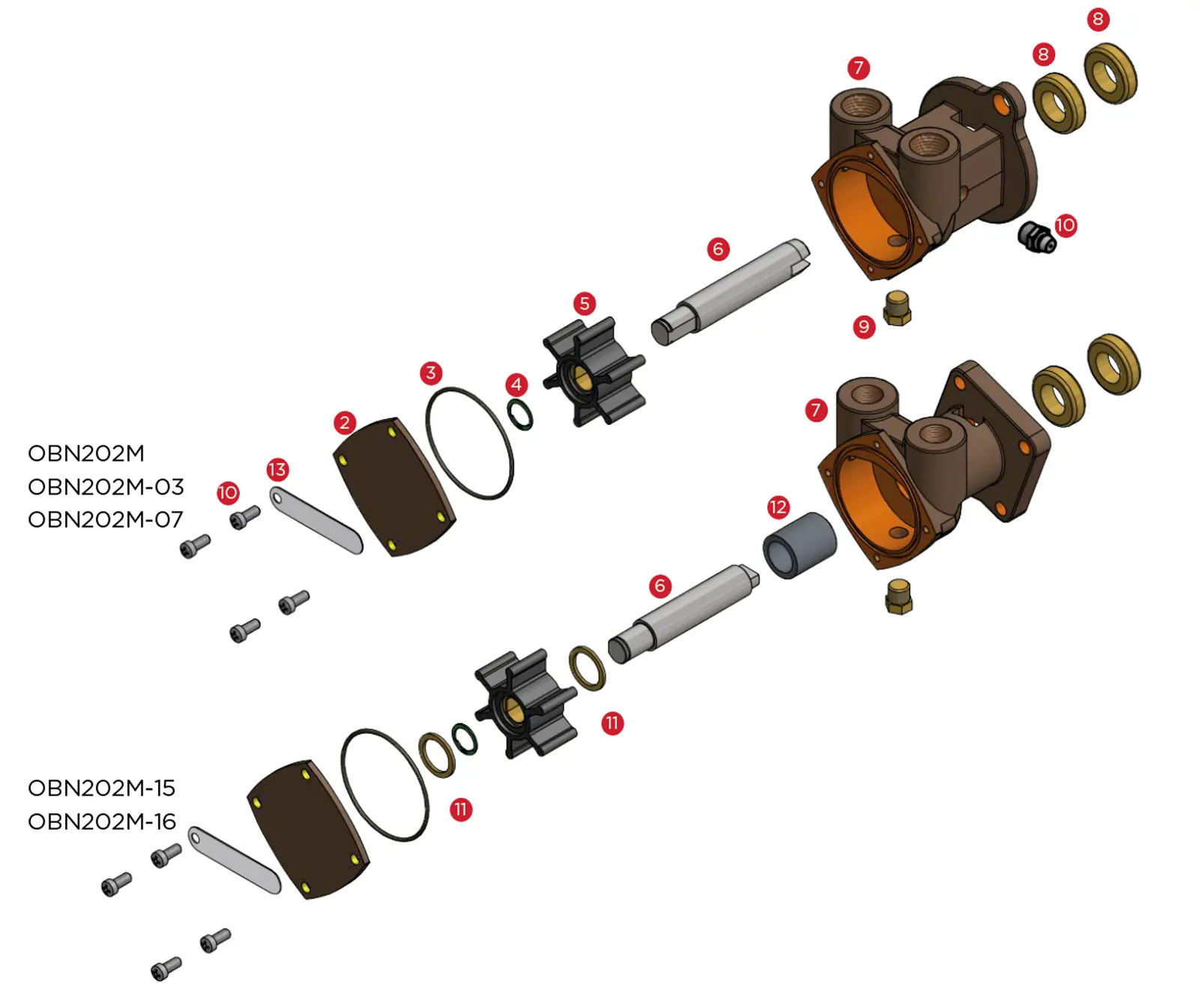

Blowup of N202M-16

Item 1
(on image above)

Screw

$ 4.03 / each

Item 2
(on image above)

Cover

$ 74.40 / each

Item 3
(on image above)

Part # 9797-034B

O-Ring

$ 13.40 / each

Item 4
(on image above)

Snap Ring

$ 4.03 / each

Item 5
(on image above)

Impeller, Neoprene

$ 73.30 / each

Not Shown
(Not Shown on image above)

Impeller, BUna-N (oil resistant)

$ 345.00 / each

Item 6
(on image above)

Shaft

$ 84.90 / each

Item 8
(on image above)

Lip Seal (Brass case, buna elastomer)

$ 41.20 / each

Item 9
(on image above)

Plug

$ 6.70 / each

Item 11
(on image above)

Washer

$ 6.70 / each

Item 12
(on image above)

Carbon Bearing

$ 35.80 / each
