Oberdorfer Pump model N202M Parts( Click Here for the Oberdorfer Pump N202M Product Page ) |

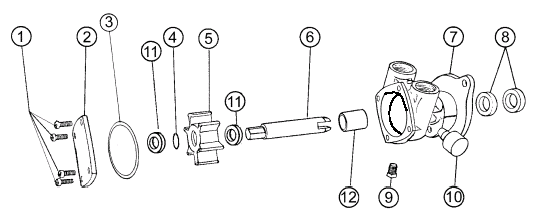

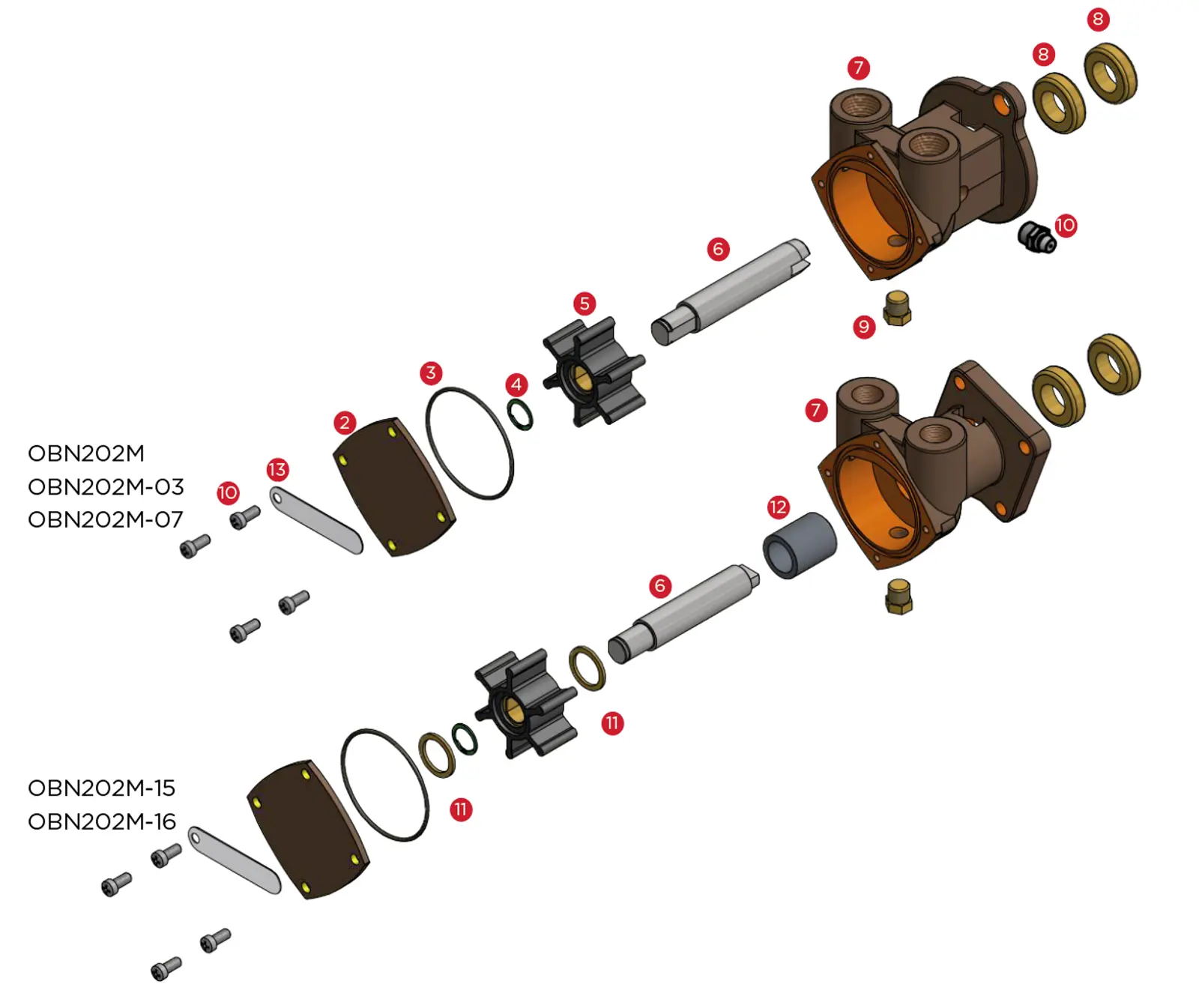

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
Parts List for Oberdorfer Pump model # N202M | |||||||
Key | Part # | Description | Price | Stock | Required | Quantity | Action |
---|---|---|---|---|---|---|---|
1 | # 5385 | Screw | $4.26 | 38 in Stock | 4 | ||
2 | # 6597B | Cover | $79.00 | 12 in Stock | 1 | ||
3 | # 9797-034B | O-Ring | $14.21 | 143 in Stock | 1 | ||
4 | # 5373 | Snap Ring | $4.26 | 31 in Stock | 1 | ||
5 | # 6593 | Impeller, Neoprene | $77.78 | 321 in Stock | 1 | ||
# 8514 | Impeller, BUna-N (oil resistant) | $366.67 | 7 in Stock | 1 | |||
6 | # 6598 | Shaft | $97.22 | 6 in Stock | 1 | ||
8 | # 5463 | Lip Seal (Brass case, buna elastomer) | $43.78 | 50 in Stock | 2 | ||
9 | # 6600 | Plug | $7.11 | 4 in Stock | 1 | ||
10 | # 5910 | Grease Cup | $79.99 | 0 in Stock | 1 | ||
