Sherwood Pump model Parts

PARTS LIST for Sherwood Pump model # Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Sherwood Pump P1710 Product Page )

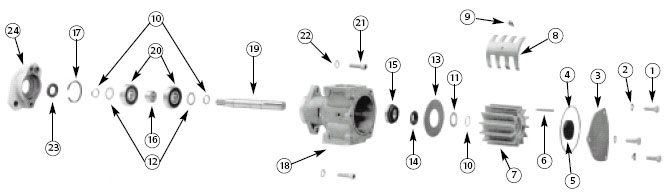

Blowup of P1710

Item 1
(on image above)

Cap Screw

$ 2.35 / each

Item 2
(on image above)

Lockwasher

$ 0.79 / each

Item 3
(on image above)

Cover Plate

$ 63.92 / each

Item 4
(on image above)

O-ring

$ 8.60 / each

Item 6
(on image above)

Key

$ 10.48 / each

Item 7
(on image above)

Impeller

$ 91.78 / each

Item 8
(on image above)

Cam

$ 90.60 / each

Item 9
(on image above)

Cam Screw

$ 9.14 / each

Item 10
(on image above)

Retaining Ring (Ext)

$ 11.68 / each

Item 11
(on image above)

Washer

$ 3.00 / each

Item 12
(on image above)

Washer

$ 9.57 / each

Item 13
(on image above)

Wear Plate-Pin Assy

$ 61.34 / each

Item 16
(on image above)

Spacer

$ 82.21 / each

Item 17
(on image above)

Retaining Ring (Int)

$ 11.99 / each

Item 20
(on image above)

Ball Bearing

$ 54.36 / each

Item 21
(on image above)

Adaptor Bolts

$ 2.66 / each

Not Shown
(Not Shown on image above)

Cam Screw O-ring

$ 3.70 / each
