Shurflo Pump model 4258-163-E09 Parts

PARTS LIST for Shurflo Pump model # 4258-163-E09 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Shurflo Pump 4258-163-E09 Product Page )

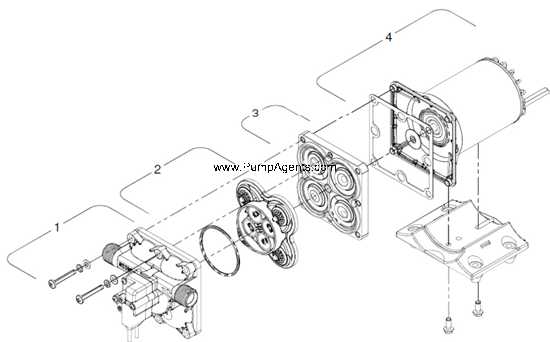

Blowup of 4258-163-E09


Item 1
(on image above)

Part # 94-804-02

Upper Assembly with Switch

$ 72.96 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 2
(on image above)

Part # 94-800-01

Valve Assembly

$ 23.28 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (4 in stock)


Item 3
(on image above)

Part # 94-801-02

Drive Assembly

$ 57.94 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Not Shown
(Not Shown on image above)

Part # 94-804-03

Pump Head

$ 318.10 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Not Shown
(Not Shown on image above)

Part # 94-800-03

Check Valve

$ 15.29 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)
