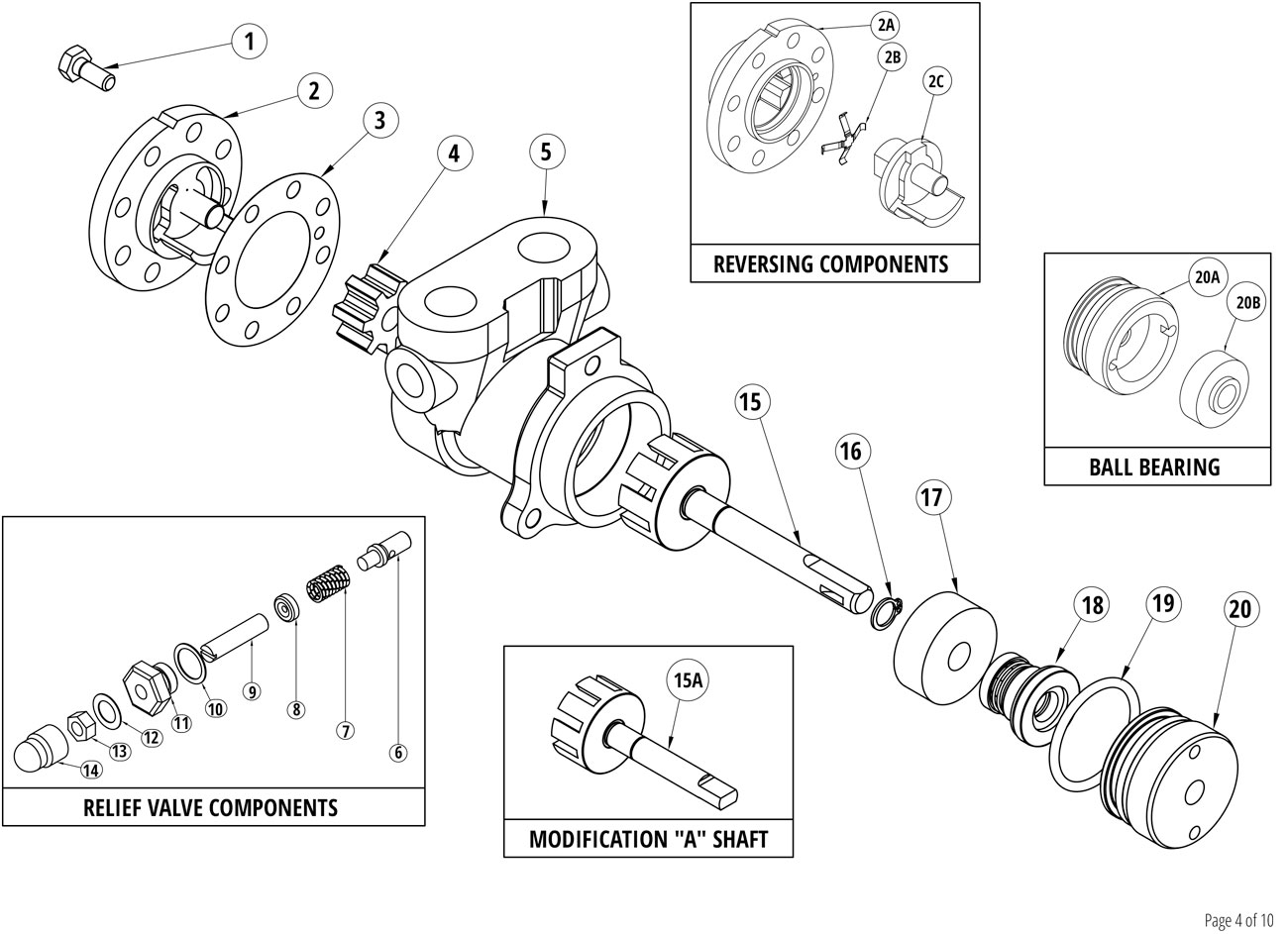

PARTS LIST for Tuthill Pump model # 0LEV-7 Pump:
( Click Here for the Tuthill Pump 0LEV-7 Product Page )
Item 6
(on image above)
plunger
$ 40.25 / each
Item 7
(on image above)
standard spring (55-120)
$ 26.25 / each
Not Shown
(Not Shown on image above)
optional spring (25-34)
$ 24.50 / each
Not Shown
(Not Shown on image above)
optional spring (35-54)
$ 24.50 / each
Not Shown
(Not Shown on image above)
optional spring (121-169)
$ 26.25 / each
Not Shown
(Not Shown on image above)
optional spring (170-374)
$ 26.25 / each
Item 10
(on image above)
valve cap gasket
$ 22.75 / each
Item 11
(on image above)
valve cap gasket
$ 49.00 / each
Item 12
(on image above)
cap cover gasket
$ 24.50 / each
Item 13
(on image above)
nut
$ 28.00 / each
Item 14
(on image above)
acorn nut
$ 38.50 / each
Item 18
(on image above)
Seal
standard Viton seal
$ 155.20 / each
Item 19
(on image above)
standard Viton O ring
$ 40.25 / each
